MONARCH 17X54 Lathe From Storage - Inch/MM - XLNT Condition

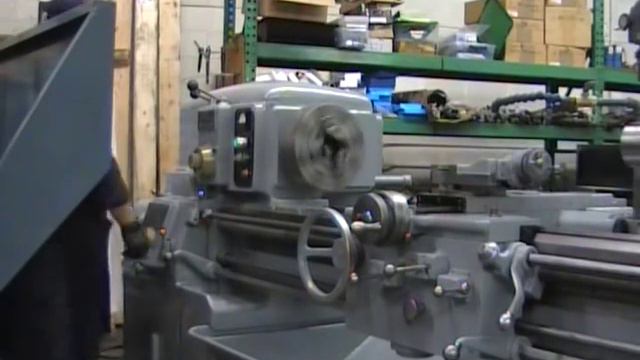

THIS MACHINE IS SOLD. PLEASE CALL 801-531-9500 FOR SIMILAR MODELS. * MACHINERY CONSULTANTS INC * WWW.TOOLMACHINE.COM * 1390 W 200 S * SALT LAKE CITY UT 84104 U.S.A. * (801) 531-9500 PHONE * MCI@TOOLMACHINE.COM ~~~ * new arrival * Pre-Owned MONARCH 17" X 54" Heavy Duty Toolroom Lathe Model #612 Inch/MM Threading Capabilities Serial No. 49493 General Specifications, Approximate Subject to verification Swing over bed 17.5" Swing over cross slide 10.25" Max distance between centers 54" Spindle nose D1-6 Spindle bore 2-1/8" Spindle speeds (36) 12 TO 1500 RPM Tailstock taper #4MT Width of bed 15" Threads (66) 2 TO 120 tpi inch, (78) 2 to 13 MM Feeds (66) .001 to .0615 IPR inch, also has metric feeds Main motor 10 HP, 220/440V Approx dimensions 132"L x 50"W x 56"H Approx weight 6500# Inventory #8470 Complete With • Hardened ways • Power rapid traverse on X & Y • Taper attachment • Coolant pump • Chip pan Condition: low hour, high quality toolroom lathe from long term storage! ~~~ Please call or email if we can answer any questions on this lathe, ready for inspection under power, we are 5 minutes from Salt Lake Intl airport.
