1TE663/723 HT2021 - Lab 4 part 1

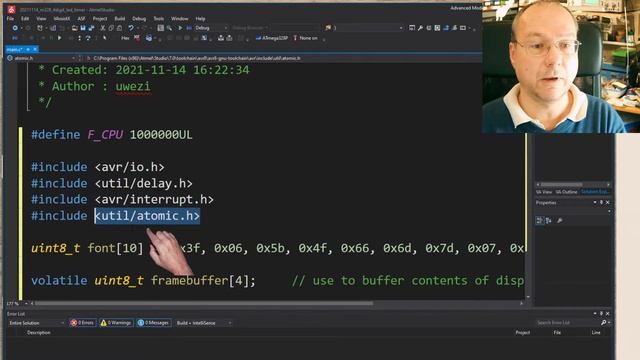

Updating a 4-digit 7-segment display within a timer interrupt routine on the ATmega328. 01:20 the pins on the chip we will be using 02:20 warning signs for wrong connections 04:00 preparation of the connections, counting wires 06:15 the power supply rails on the breadboard 07:00 starting connecting the wires 09:00 connecting the power supply pins 11:00 connecting the programmer 12:00 testing the connection between programmer and microcontroller 14:00 connecting the wires to port D 16:30 connecting the wires to the segments of the LED display 20:40 connecting the wires between port B and the digit pins 23:00 the code 27:00 the font structure in the code 31:00 the main()-function 32:00 the init()-function 32:45 looking at the control registers of TIMER0 37:00 setting the necessary bits 45:00 the clock prescalers of TIMER0 49:00 handling the interrupt in the ISR() 52:00 compiling the code and uploading The code template can be found here: https://pastebin.com/bBnz8w3y
