62 khz High Power Switching Supply Part 1

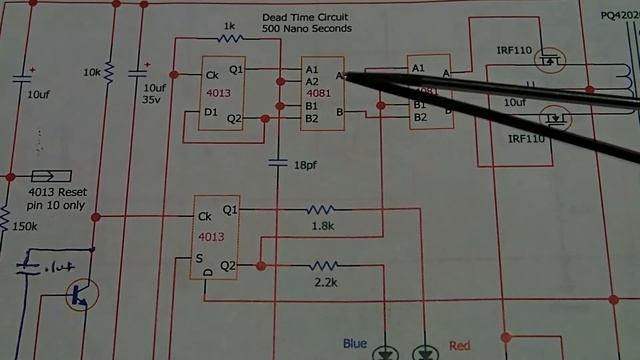

Watch as I design a switching power supply from scratch from CMOS ic chips and a LM555 timer. Includes a dead time circuit to prevent shoot thru currents and a split phase driver circuit. Plus over current protection. Part 2 will be the design of the 62 Khz power transformer and the MOSFET output circuit plus bridge diodes and filter capacitors. Part 2 62Khz High Power Switching Supply. https://youtu.be/iFgdMe1bHU0
Watch as I design a switching power supply from scratch from CMOS ic chips and a LM555 timer. Includes a dead time circuit to prevent shoot thru currents and a split phase driver circuit. Plus over current protection. Part 2 will be the design of the 62 Khz power transformer and the MOSFET output circuit plus bridge diodes and filter capacitors. Part 2 62Khz High Power Switching Supply. https://youtu.be/iFgdMe1bHU0
