[DIY] Building a midiphy Wirescanner (video tutorial)

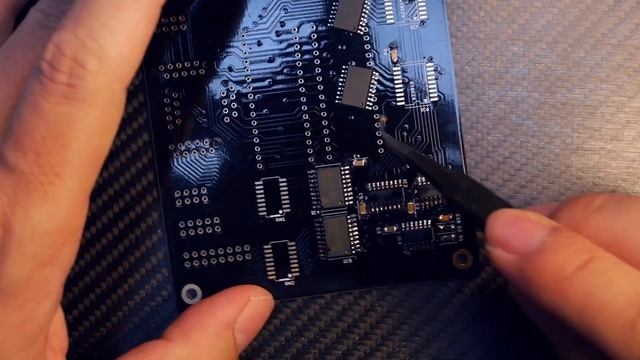

Full midiphy wirescanner kits (including all parts and the case) are now available: https://www.midiphy.com/en/shop-details/0/93/midiphy-wirescanner-full-kit They should also be available through other resellers soon (we'll link them below, once they are listed). All contained SMT parts are large-size, this PCB was designed with hand-soldering in mind. Required tools: * standard size soldering iron and solder (e.g. 0.7mm) * SMT tweezers (any tweezers should do) * magnifier/loupe * recommended: flux pen * recommended: desoldering braid Required assembly time: * about 1 hour Power: * a USB-B cable and any USB 5V power source, i.e. a USB phone charger. Enjoy and best regards, Peter/Hawkeye
