DTC Toyota B1424-24 Short Explanation

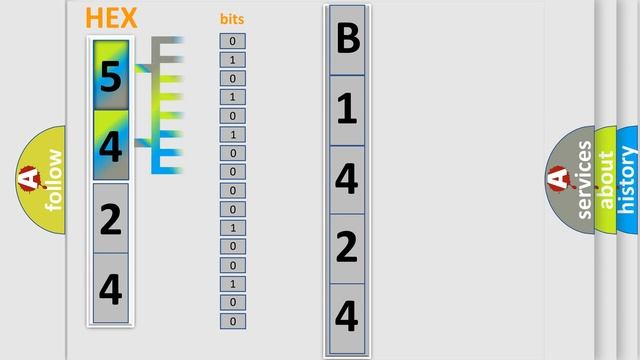

The video focuses on the basic Toyota specific diagnostic error code. Contents: 0:21 Basic DTC analysis according to OBD2 protocol standard. 1:48 Insight into programming - an explanation of what a bit is and how a byte is formed - decoding the Error Code to the base programming 2:58 A diagnostically understandable description of the Diagnostic Trouble Code 3:05 Basic error definition - Possible causes or errors of the car and its parts describing the mentioned error We will continue to work on improving the content. Our efforts at Maxidot s.r.o.the video content gets better. #maxidot #dtc #howto #diagnostictroublecode #toyota Make: Toyota Code: B1424 24 Definition: Gear Shift Position Control Error - Invalid Serial Data Received Description: The Electronic Shift Module (ESM) monitors the shifter position sensors for electrical failures. If one or more position sensors are faulted, a DTC will set and the shift indicator LEDs may be turned off depending on the severity of the failure. Cause: Electronic Shift Module (Esm) Failure Type: Signal Stuck High This sub type is used for failures where the control module measures a signal that remains high when transitions are expected.
