Naren Auto Start Unit Model S1 (English Version)

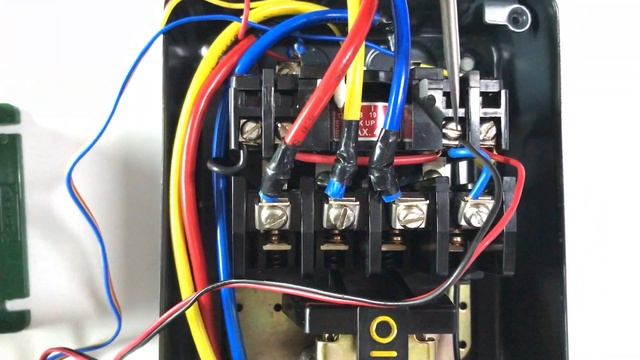

This product is suitable for all 3 Phase submersible pumps and 2 Phase Monoblock Pumps Working: This Product turns ON the 3 Phase motor on the arrival of 3 Phase Supply. The device first checks if the incoming 3 Phase supply is right. If yes, it will turn ON the pump after the power on delay. The Power ON delay can be adjusted using the knob provided on the product. Power ON Delay: User Adjustable from 5 to 60 Seconds Relay ON Time: 5 Seconds Features - 3 Phase OK Indicator - Auto Start ON Indicator - Adjustable Power ON Delay from 5 to 60 Seconds - Compact design - ABS Body - Auto ON/OFF Switch - 3 Phase/2 Phase Switch - Easy Installation - Wire Type Design - Compatible with all 3 Phase Starters and 2 Phase Monoblock Starters Rating: Suitable for all 3 Phase Motor Starters from 1HP to 20HP Connections Red, Yellow and Blue (RYB) 3 core wires to the Incoming 3 Phase Power Supply Red and Black (C1 and C2) 2 core wires across (in parallel) to the ON/Start Push button of your motor starter Application Naren Auto Start Unit Model S1 is used in agricultural fields that require the 3 Phase motor to be turned ON as soon as the 3 Phase supply has arrived. It is a necessity in many agricultural fields to turn ON the motor for as long as the proper power is present. This product is also compatible with the 2 Phase Monoblock Motors as well. This product is tailor made for such applications. It is very compact, easy to install and serves the purpose. Warranty: This product carries a warranty of 6 months from the date of purchase. Any issues within the warranty period will be attended to free of cost at our works in Bangalore. Post the warranty period, the product will be eligible for the paid service at our works. The invoice copy acts as a warranty card. The shipping of the product for repair will have to be done by the consumer. Product Helpline: +919972243774 This product can be purchased in the link below https://narenelectrix.in/shop/home/26-model-s1.html Please feel free to reach us for enquiries or technical issues Our contact 9972243774 info@narenelectrix.in
