DTC Lexus B1826-56 Short Explanation

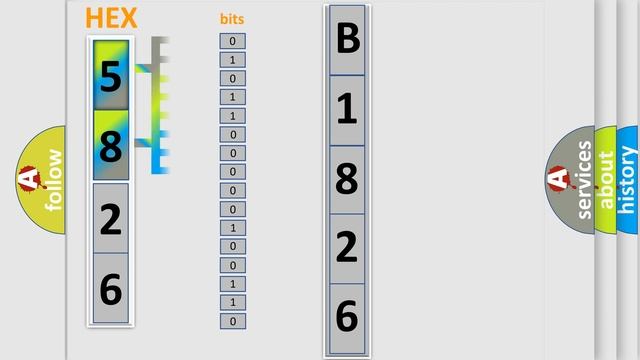

The video focuses on the basic Lexus specific diagnostic error code. Contents: 0:21 Basic DTC analysis according to OBD2 protocol standard. 1:48 Insight into programming - an explanation of what a bit is and how a byte is formed - decoding the Error Code to the base programming 2:58 A diagnostically understandable description of the Diagnostic Trouble Code 3:05 Basic error definition - Possible causes or errors of the car and its parts describing the mentioned error We will continue to work on improving the content. Our efforts at Maxidot s.r.o.the video content gets better. #maxidot #dtc #howto #diagnostictroublecode #lexus Make: Lexus Code: B1826 56 Definition: No Communication With Instrument Panel Cluster Cause: IPC Class 2 circuit is open, shorted to ground or to B+IPC ignition power circuit has a high resistance conditionIPC main ground circuit(s) has a high resistance conditionIPC (module) may have failed and is pulling the circuit low Failure Type: InvalidorIncompatible Configuration This sub type indicates a control module or system configuration that cannot be valid, e.g. to have mutually exclusive options set on at the same time, or a set up that is not supported by the currently installed hardware or software.
