5-66 Determine the components of a rod that is supported by a ball-socket joint, a wall, and a rope

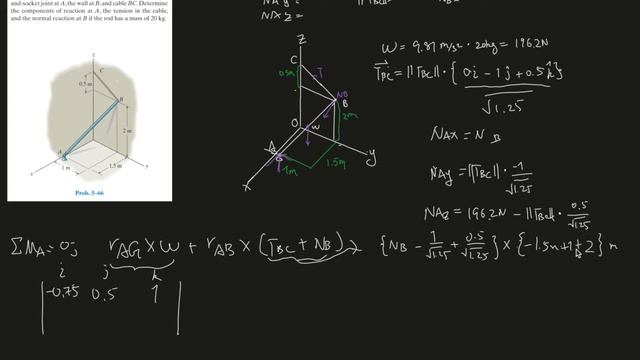

The smooth uniform rod AB is supported by a ball and- socket joint at A, the wall at B, and cable BC. Determine the components of reaction at A, the tension in the cable, and the normal reaction at B if the rod has a mass of 20 kg. My email: TheengineeringWei@gmail.com Book: Engineering Mechanics Statics 14th Edition Author: Russell.C. Hibbeler ISBN-13: 978-0133918922 Email me if you want: 1. Specific problems that you would like me to make a video on 2. Further support on a specific question 3. Personal Tutor (online) 4. The PDF version of this book and the answer keys. I do indeed have them. However, don't just copy the answers down
