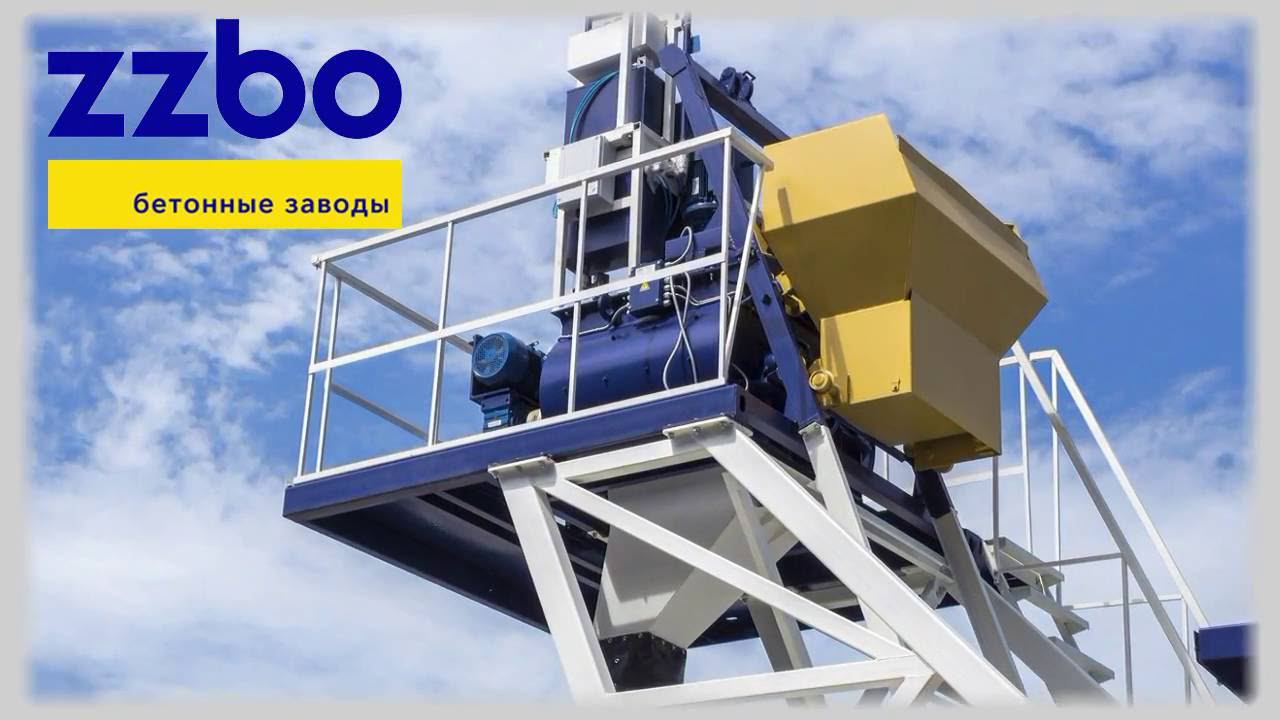

Mobile concrete mixing plant - COMPACT-15
COMPACT-15 - a renovated batching plant from a range of mobile concrete mixing plants COMPACT by ZZBO. Capacity - 15 m3/hour. Installed on a reinforced mounting frame and placed on a level ground. No foundation or skip pit needed. One Euro Trailer or 40-feet container for transportation. One day for plant’s assembly and starting-up. No need for re-commissioning in case of relocation. Equipment warranty – 2 years. Operation in a fully automatic mode on 10” OMRON sensor panel in accordance with the single-button principle. The operator chooses the concrete grade, its quantity and pushes the START button. A comfortable operator’s compartment built-in the main frame. ABAC compressor is in-frame protected against external effects. Enlarged batching complex - total capacity 24 m3. Two hoppers of 12 m3 each. Loading height - only 3 metres, loading width - 3 metres. Can be operated using any front-end loader without an access ramp. The conveyor with a lined drive drum and zinc-plated rollers. The upgraded concrete mixer: 1. The skip with a bottom gate and a hoist with the embedded electric brake. Perpendicular location of the skip to the mixer's shafts. 2. Material of the armour - wear-resistant cast iron, 12 mm thick. 3. “Knuckle” mounting of the spokes for lengthways arms adjustment over the shaft. COMPACT-15 - one of the leaders on the market of mobile concrete batching plants. The renovated COMPACT-15 by ZZBO is available in stock any time.
