softgel encapsulation production equipment Gelatin capsules gel making machine

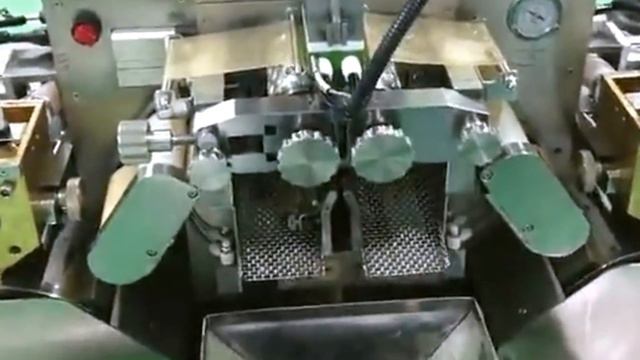

Main body of machine with drying tunnel Machine output(capsules/hour 1.5rmp) 17100(8#ov) Filling difference ≤±2% Filling volume(single plunger) 4*（1-1.5ml） Total power consumption 1.5 kw Power supply 3 phase 380v 50hz Compressed air 0.6mpa Die roll size 64*60mm Overall dimension 1910*1500*2100mm Weight 1600kg Air Compressor ( KQY65) Material SUS 304 Dimension 420mm X 220mm X 360mm Weight 2 Kg Voltage 220 V / 50 Hz Power ≤ 320 W Air folw ≤ 3.3 m / H Capsule Dry Tray & Trailer Material PVC Dimension 750mm X 480mm X 55mm Capacity 2500 capslue Trailer Material SUS 304 Dimension 775mm X 510mm X 115mm Four casters Equipped on the bottom Weight 80 Kg Tumble Dryer(HTR-II) Basket Size Φ450mm X 500mm / central Control Electric Spec 220 V / 380 V Required Power 3.2 Kw Main Motor 0.2Kw X 2 Motor Pan Motor 0.2Kw X 2 Fans Dimension 1520mm X 870mm X 930mm Weight 220 Kg Material SUS 304 for Contract area Gelatin Melting Tank Material SUS 304 Dimension Φ650mm X 1700mm Weight 140 Kg Power 3 Kw Voltage 220 V / 380 V Vaccum degree 0.02-0.09 Mpa Max rate 40 rpm( fixed) Max temp 50-100℃ Max capa 100 litter each tank Burdening Tin Material SUS 304 Dimension Φ600mm X 1700mm Weight 120 Kg Power consumption 2 Kw Voltage 220 V / 380V / 440 V Volume 80 L Max tem 0-100 ℃ Revolution 36 R / Min Working Pressure 0.02-0.09 Mpa Light check up stage Material SUS 304 Produce capacity 20-100 Kg/H Dimension 800mm X 600mm X 800mm Weight 60 Kg Power consumption 100 W Voltage 220 V SHENZHEN PENGLAI INDUSTRIAL CORPORATION LIMITD for manufacturing COSMETIC&FOOD&Pharmaceutical MAKING & PACKAGING MACHINES is a famous packaging solution provider in China! The professional channel created by PENGLAI experienced engineer team covering all the machinery from making machines via filling capping machines to packaging equipments,offers the helpful knowledge in food&cosmetic&pharmaceutical field like shampoo making machine,vacuum food packaging,cream mixing equipments,etc. As a famous-und experienced technical team we often design and manufacture unique machines to meet demands from global customers.There are in more than 150countries customers using our machines.Check the link for finding out which machines bought by them: https://penglaichina.com/news/ After-sales service production line running for more than 5months in factory: Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE) Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training. After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above). PENGLAI INDUSTRIAL CORPORATION LIMITED US agent Office 9284 talway cir Boynton beach. fL 33472 UK Agent Office 69 Waterloo Road Manchester England M8 8FJ Contact: Jack Du Cel: 0086-15811882441 Phone: +86-755-86718316 Fax: 0086-755—25417648 Email:penglaipacking@gmail.com postmaster@penglaipacking.com Skype: turnanewleaf Website: https://penglaipacking.com https://penglaichina.com https://youtube.com/user/penglaichina https://youtube.com/user/mrjackdu007 https://youtube.com/user/cosmeticmachines
Main body of machine with drying tunnel Machine output(capsules/hour 1.5rmp) 17100(8#ov) Filling difference ≤±2% Filling volume(single plunger) 4*（1-1.5ml） Total power consumption 1.5 kw Power supply 3 phase 380v 50hz Compressed air 0.6mpa Die roll size 64*60mm Overall dimension 1910*1500*2100mm Weight 1600kg Air Compressor ( KQY65) Material SUS 304 Dimension 420mm X 220mm X 360mm Weight 2 Kg Voltage 220 V / 50 Hz Power ≤ 320 W Air folw ≤ 3.3 m / H Capsule Dry Tray & Trailer Material PVC Dimension 750mm X 480mm X 55mm Capacity 2500 capslue Trailer Material SUS 304 Dimension 775mm X 510mm X 115mm Four casters Equipped on the bottom Weight 80 Kg Tumble Dryer(HTR-II) Basket Size Φ450mm X 500mm / central Control Electric Spec 220 V / 380 V Required Power 3.2 Kw Main Motor 0.2Kw X 2 Motor Pan Motor 0.2Kw X 2 Fans Dimension 1520mm X 870mm X 930mm Weight 220 Kg Material SUS 304 for Contract area Gelatin Melting Tank Material SUS 304 Dimension Φ650mm X 1700mm Weight 140 Kg Power 3 Kw Voltage 220 V / 380 V Vaccum degree 0.02-0.09 Mpa Max rate 40 rpm( fixed) Max temp 50-100℃ Max capa 100 litter each tank Burdening Tin Material SUS 304 Dimension Φ600mm X 1700mm Weight 120 Kg Power consumption 2 Kw Voltage 220 V / 380V / 440 V Volume 80 L Max tem 0-100 ℃ Revolution 36 R / Min Working Pressure 0.02-0.09 Mpa Light check up stage Material SUS 304 Produce capacity 20-100 Kg/H Dimension 800mm X 600mm X 800mm Weight 60 Kg Power consumption 100 W Voltage 220 V SHENZHEN PENGLAI INDUSTRIAL CORPORATION LIMITD for manufacturing COSMETIC&FOOD&Pharmaceutical MAKING & PACKAGING MACHINES is a famous packaging solution provider in China! The professional channel created by PENGLAI experienced engineer team covering all the machinery from making machines via filling capping machines to packaging equipments,offers the helpful knowledge in food&cosmetic&pharmaceutical field like shampoo making machine,vacuum food packaging,cream mixing equipments,etc. As a famous-und experienced technical team we often design and manufacture unique machines to meet demands from global customers.There are in more than 150countries customers using our machines.Check the link for finding out which machines bought by them: https://penglaichina.com/news/ After-sales service production line running for more than 5months in factory: Guarantee: for all the machine, it claims one year for guarantee.(Excluded from the warranty are problems due to accidents, misuse,misapplication, storage damage, negligence, or modification to the Equipment or its components. ALSO THE EASY BROKEN SPARE PART IS NOT INCLUDED IN THE GUARANTEE) Installation: after the machine arrive your factory,if you need,our technician will go to your place to install and test the machine and also training your worker to operating the machine (The time of train depend on you worker). The expenses (air ticket ,food , hotel,the travelling fee on your country) should be on your account and you need paid for the technician USD50 per day. also you can go to our factory to do training. After-sale service: If you get the problem on the machine ,our technician will go to your place to fixed the machine as soon as possible.The cost should be in your account.(as above). PENGLAI INDUSTRIAL CORPORATION LIMITED US agent Office 9284 talway cir Boynton beach. fL 33472 UK Agent Office 69 Waterloo Road Manchester England M8 8FJ Contact: Jack Du Cel: 0086-15811882441 Phone: +86-755-86718316 Fax: 0086-755—25417648 Email:penglaipacking@gmail.com postmaster@penglaipacking.com Skype: turnanewleaf Website: https://penglaipacking.com https://penglaichina.com https://youtube.com/user/penglaichina https://youtube.com/user/mrjackdu007 https://youtube.com/user/cosmeticmachines
