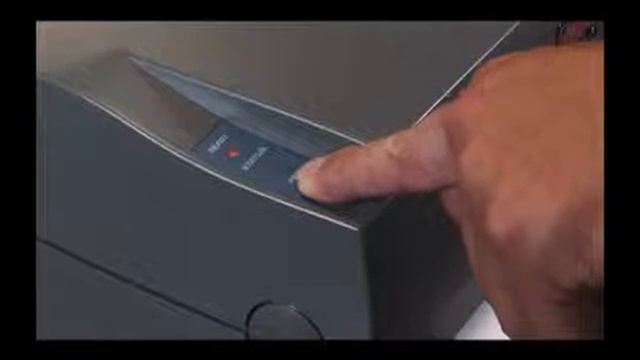

Godex EZ1000Plus Barcode Printer
Print Method Thermal Transfer / Direct Thermal Resolution 203 dpi (8 dots/mm) Print Speed 4 IPS (102 mm/s) Print Width 4.25" (108mm) Print Length Min. 0.16” (4 mm)**; Max. 68” (1727 mm) Processor 32 Bit RISC CPU Memory 4MB Flash (2MB for user storage) / 8MB SDRAM Sensor Type Fixed center aligned see-through sensor, adjustable reflective sensor Media Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 5” (127 mm) Core diameter: 1", 1.5", 3" (25.4 mm, 38.1 mm, 76.2mm) Ribbon Types: Wax, wax/resin, resin Length: 981’ (300 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.67“ (68 mm) Core diameter: 1” (25.4 mm) Printer Language EZPL, GEPL, GZPL Software Label design software: QLabel-IV (for EZPL only) Driver: Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android Resident Fonts Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable Download Fonts Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable Barcodes 1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5),I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14,HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255 Unicode UTF8、UTF16BE、UTF16LE Graphics Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software Interfaces Serial port: RS-232 (DB-9) USB port (default on) Parallel port: Centronics 36-pin Control Panel Two bi-color LEDs: Ready, Status Function Key: FEED Power Auto Switching 100-240VAC, 50-60Hz Environment Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C) Humidity Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing. Agency Approvals CE(EMC), FCC Class A, CB, cUL, CCC Dimension Length: 11.2” (285 mm) Height: 6.8” (171 mm) Width: 8.9” (226 mm) Weight 6 lbs (2.72Kg) ,excluding consumables Options Rottary Cutter Label Dispenser Ethernet 10/100Mbps print server (default off; disables USB when in use) 802.11 b/g wireless print server (Default off; disables USB when in use) Real Time Clock with CF card adapter (max. 1GB CF card) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Note * Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.
